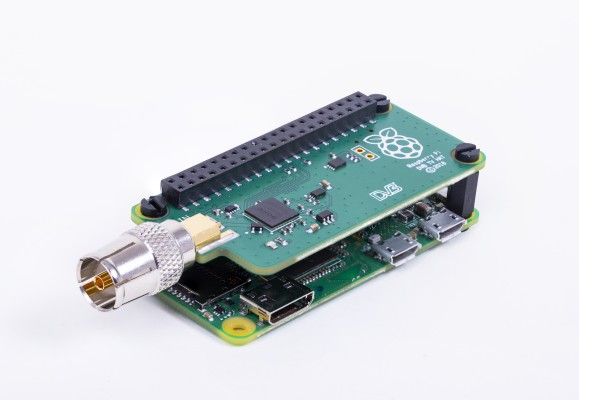

RASPBERRY PI DVB TV-UHAT, TV HAT

31,60 €




The Raspberry Pi TV-uHAT allows you to receive digital terrestrial TV broadcast systems which includes DVB-T and DVB-T2 on a Raspberry Pi. With the board you can receive and view TV on a Raspberry Pi or create a TV server that allows you to stream received TV over a network to other

devices. The TV uHAT can be used on all Raspberry Pi boards when running as a backend (server for other devices on the network). Performance when receiving and viewing TV on a Pi can vary and it is recommended to use a Raspberry Pi 2, 3 or 3+ to do this.



The board comes with:

- set of mechanical spacers

- 40 way header

- Aerial adaptor

Digital Video Broadcast (DVB) is a widely adopted standard for transmitting broadcast Television, countries that have adopted the DVB standard can be found here; https://www.dvb.org/resources/public/images/site/dvb-t2_map.pdf



Please note it is the responsibility of the end user to ensure that they have the necessary permissions / license to receive broadcast television in their country.



Specification

- Sony CXD2880 TV tuner

- Supported TV standards: DVB-T2, DVB-T

- Reception frequency: VHF III, UHF IV, UHF V



Channel bandwidth:

- DVB-T2: 1.7MHz, 5MHz, 6MHz, 7MHz, 8MHz

- DVB-T: 5MHz, 6MHz, 7MHz, 8MHz



Links:

< /> Getting-started-with-the-Raspberry-Pi-TV-HAT

< /> Raspberry-Pi-TV-HAT-Product-Brief









Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
