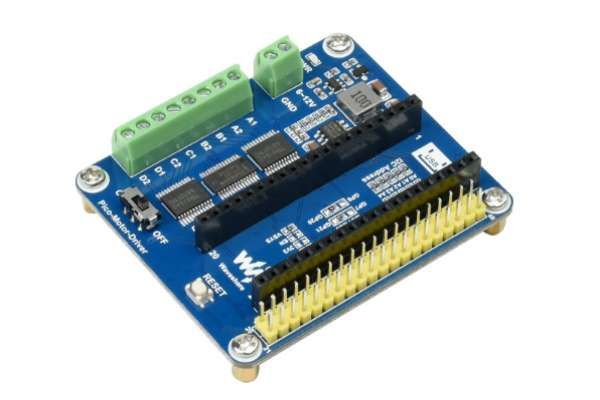

DC MOTOR DRIVER MODULE FOR RASPBERRY PI PICO, DRIVING UP TO 4X DC MOTORS, WAVESHARE 19764

  • Stock YES, 3 pcs.
  • Brand: WAVESHARE
  • ID number: 4146/
24,79 €




DC Motor Driver Module for Pico

suitable for 2WD or 4WD driving

Features at a glance
  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
  • I2C controlled, supports 32x different I2C addresses by setting the 5 address jumpers
  • Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
  • Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating
  • Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
  • Breakout unused pins of Pico for easy extension
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
Operating voltage 6~12V (VIN terminals) Logic level 3.3V
PWM driver PCA9685 Motor driver TB6612FNG
Control interface I2C Dimensions 65 × 56mm
Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico

Driving up to 4x DC motors
for reference ONLY, Raspberry Pi Pico and DC motors are NOT included.
Onboard 5V regulator
Pinout definition
Outline dimensions

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
