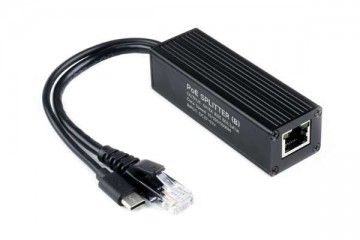

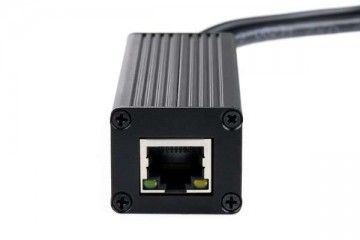

INDUSTRIAL GIGABIT POE SPLITTER, OPTIONS FOR 5V 5A TYPE-C POWER OUTPUT PORT, ONBOARD MPS CONTROL CHIP, SAFER AND MORE STABLE, WAVESHARE 27736
- Stock NO
- Brand: WAVESHARE
- ID number: 4032/
Industrial Gigabit PoE Splitter
Options for 5V 5A Type-C or DC power output port
Supports IEEE 802.3af/at-compliant Gigabit Ethernet
Features at a glance
- Adopts MPS control chip solution, high-efficiency, high-safety, stable-performance
- 10/100/1000Mbps auto-negotiation Ethernet port
- Supports 802.3af/at-compliant PoE standard
- Adopts isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
- 5V DC output, suitable for powering and networking Raspberry Pi and other small-scale network devices
- Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
Specifications
| Power supply | supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering |
|---|---|
| PoE input voltage | 37V ~ 57V |
| Power output | 5V 5A (MAX) |
| Cable | Cat-5 UTP |
| Standard | IEEE 802.3 af/at PoE Ethernet |
| Data rate | 10/100/1000Mbps |
| LED indicator | PoE power input indicator |
| Dimensions | 102.5 × 29.6 × 24.8mm (L × W × H) |
| Operating temperature | -40℃ ~ 85℃ |
MPS Control Chip Solution
High-efficiency, Safer And More Stable
Switching Mode Power Supply (SMPS)
isolated circuit protection, effectively protecting the powered device
Industrial grade protection case
aluminum alloy case, sturdy and rugged, higher protection level, better heat dissipation
Application examples
Easy to access PoE Switch for powering the Raspberry Pi Or Other 5V-Powered Network Devices
Usage examples
* for reference only, the Raspberry Pi and switch are NOT included
Outline dimensions
