PCIE TO 2-CH M.2 ADAPTER TYPE B FOR RASPBERRY PI 5, COMPATIBLE WITH 2280 / 2260 / 2242 / 2230 SIZE NVME PROTOCOL M.2 SSD, RASPBERRY PI 5 NVME HAT, WAVESHARE 27710

26,69 €




PCIe To 2-Ch M.2 Adapter

Designed for Raspberry Pi 5

2-Ch NVMe Protocol M.2 Solid State Drive Adapter, High-Speed Reading/Writing

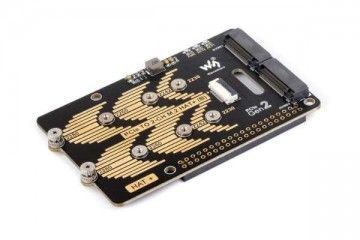

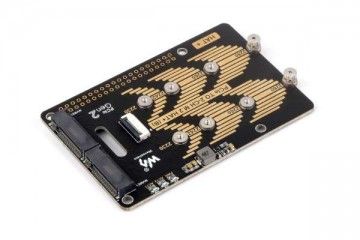

PCIe To 2-Ch M.2 Adapter for Raspberry Pi 5, front view and features



Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

PCIe To 2-Ch M.2 Adapter for Raspberry Pi 5, connecting to PI5 via 16PIN cable

* for reference only



Dual NVMe Solid State Drives Support

Compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drives
Supports PCIE X1 Gen2 Only, Supports Booting PI5 From Solid State Drive

PCIe To 2-Ch M.2 Adapter for Raspberry Pi 5, compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drive



NVMe Drive Slot Support

PCIe To 2-Ch M.2 Adapter for Raspberry Pi 5, NVMe Drive slot support

Note: Only supports the NVMe Protocol Solid State Drives.


Adopts Anti-Oxidation Immersion Gold Process
PCIe To 2-Ch M.2 Adapter for Raspberry Pi 5, adopts anti-Oxidation Immersion Gold Process
Improves reading/writing speed of your Pi

Faster reading/writing speed compared to the TF card slot of Raspberry Pi , greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive.

PCIe To 2-Ch M.2 Adapter for Raspberry Pi 5, improves reading/writing speed

* for reference only


Onboard Dual LED Indicators

Easy to monitor the Working Status

PCIe To 2-Ch M.2 Adapter for Raspberry Pi 5, onboard dual LED indicators




Onboard Power Monitoring Chip And EEPROM

Real-time monitoring of Solid State Drive power status for More Stable operation

PCIe To 2-Ch M.2 Adapter for Raspberry Pi 5, onboard power monitoring chip and EEPROM



Outline dimensions
PCIe To 2-Ch M.2 Adapter for Raspberry Pi 5, outline dimensions

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
