21.5INCH CAPACITIVE TOUCH DISPLAY, 1080×1920 FULL HD, OPTICAL BONDING TOUGHENED GLASS PANEL, SUPPORTS RASPBERRY PI / JETSON NANO, WAVESHARE 27660

364,34 €

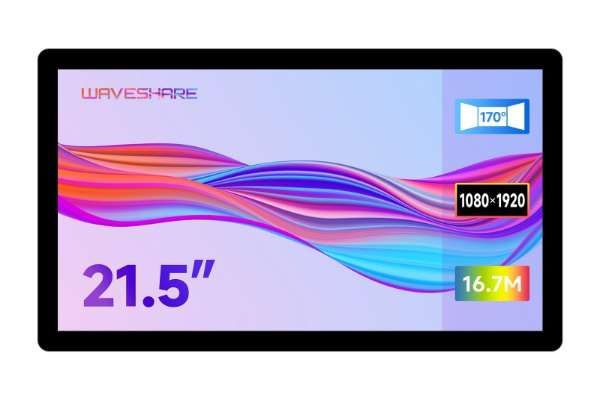

21.5″ Capacitive Touch Display

Industrial Quality, Suitable For Industrial, Commercial, And Medical Applications, Etc.

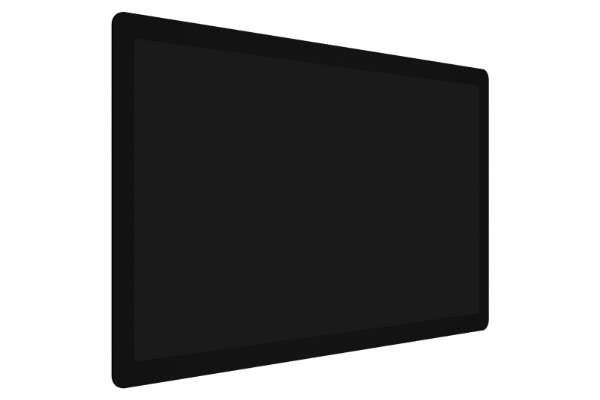

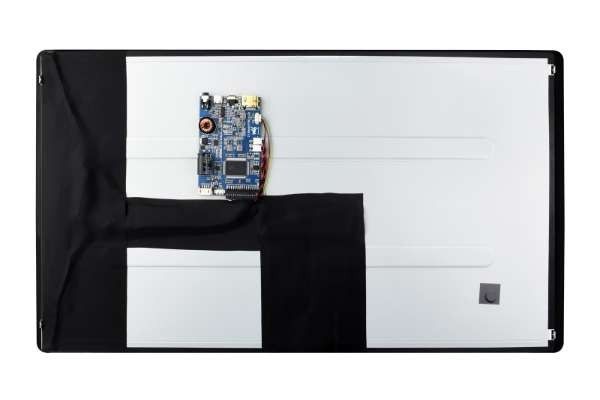

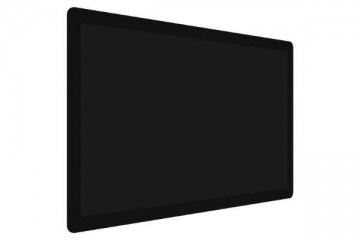

 21.5inch Capacitive Touch Display, front and back view

    • Size21.5″
    • Resolution1080×1920
    • Display InterfaceHDMI
    • Display Color16.7M
    • Viewing Angle170°
    • Touch TypeCapacitive
    • Touch PortType-C
    • Touch Points10-Point
    • Touch PanelToughened Glass
    • Touch Panel TechOptical Bonding
    • Temperature Range-5 ~ 60℃
    • OSD MenuBrightness/Contrast
    • Brightness600cd/m²
    • Audio Output 13.5mm Jack
    • Audio Output 24PIN Header



Device & System Support




Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
The display orientation is portrait by default, 1080×1920 resolution (H×V). Change the software config for landscape display.



Connection Examples

Working With Raspberry Pi 5

21.5inch Capacitive Touch Display, working with Raspberry Pi 5

Working With Raspberry Pi 4B

21.5inch Capacitive Touch Display, working with Raspberry Pi 4B

Working With Raspberry Pi 3B+

21.5inch Capacitive Touch Display, working with Raspberry Pi 3B+

Working With Raspberry Pi 2 W

21.5inch Capacitive Touch Display, working with Raspberry Pi Zero 2 W

You need to prepare additional mini HDMI adapter and USB cable



Working With Jetson Nano

21.5inch Capacitive Touch Display, working with Jetson Nano

Working With Mini PC

21.5inch Capacitive Touch Display, working with mini PC
for reference only, the Raspberry Pi boards and the hosts above are NOT included.



Configurable Display Orientation

The Display Orientation Is Portrait By Default, 1080×1920 Resolution (H×V).
Change The Software Config For Landscape Display

21.5inch Capacitive Touch Display, configurable display orientation
Wide Viewing Angle IPS Display Panel

Excellent Display & Color Performance
Wide Viewing Angle Up To 170°, Color Gamut Up To 72% NTSC

21.5inch Capacitive Touch Display, wide viewing angle IPS display panel

10-Point Capacitive Touch
21.5inch Capacitive Touch Display, 10-Point capacitive touch
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical bonding, display well and dustproof

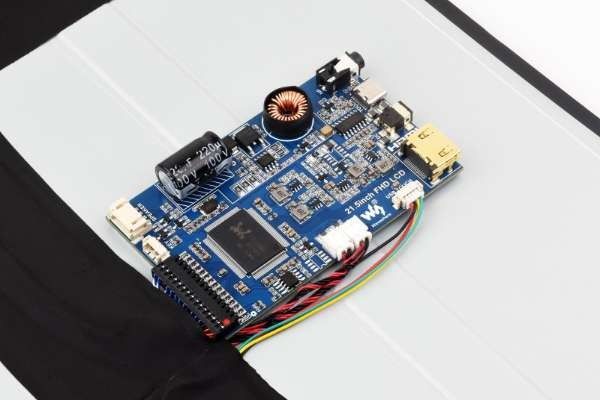

Interface Introduction

21.5inch Capacitive Touch Display, interface introduction
Application Scenarios

Suitable For Industrial, Commercial, Medical And Other Applications

21.5inch Capacitive Touch Display, application scenarios

Dimensions
21.5inch Capacitive Touch Display, dimensions

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
