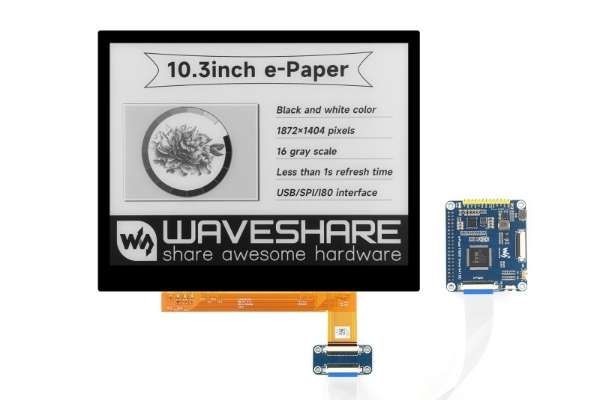

10.3INCH E-PAPER E-INK DISPLAY (G), 1872×1404 PIXELS, BLACK / WHITE, OPTICAL BONDING TOUGHENED GLASS PANEL, 2-16 GREY SCALES, WAVESHARE 26936
- Stock NO
- Brand: WAVESHARE
- ID number: 4005/
Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
- Size
10.3" - Resolution
1872×1404 - Viewing Angle
>170° - Display Color
Black / White - Grey Scale
2-16 (1-4 bit)
- Communication
Parallel Port/USB/SPI/I80 - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective - Refreshing
Partial Refresh Support - Panel Tech
Optical Bonding - Panel
Anti-glare
Toughened Glass

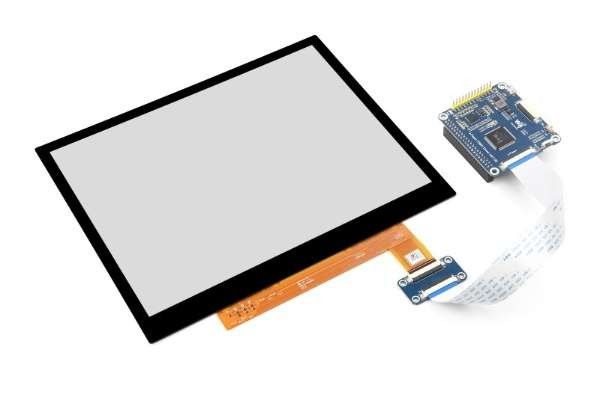

10.3inch e-Paper (G)
raw display, without driver board

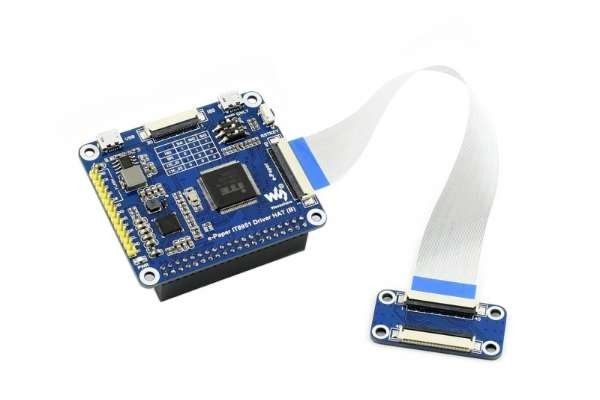

10.3inch e-Paper HAT (G)
with e-Paper IT8951 Driver HAT (B)
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Optional for e-Paper IT8951 Driver HAT (B), standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Adapting USB/SPI/I80 interface, for connecting with controller boards like Raspberry Pi/STM32, etc.
- Comes with development resources and manual (examples for Raspberry Pi/STM32)
| OPERATING VOLTAGE | 5V | DISPLAY COLOR | black, white |
|---|---|---|---|
| INTERFACE | Raw display: Parallel port | GREY SCALE | 2-16 (1-4 bit) |
| e-Paper IT8951 Driver HAT (B): USB/SPI/I80 | |||
| OUTLINE DIMENSIONS | Raw display: 225.70×183.40×2.00mm | FULL REFRESH TIME | <1s |
| e-Paper IT8951 Driver HAT (B): 65.15×56.21mm | |||
| DISPLAY SIZE | 209.66 × 157.25mm | REFRESH POWER | 1.2W (typ.) |
| DOT PITCH | 0.112 × 0.112mm | STANDBY CURRENT | |
| VIEWING ANGLE | >170° | STANDBY POWER | e-Paper IT8951 Driver HAT (B): 0.1W (typ.) |
| RESOLUTION | 1872 × 1404 pixels | ||
Adopts Anti-Glare Technology To Reduce Ambient Light Interference, Reflective Glare And Fingerprint Residue At The Same Time, Making The Image Clearer And The Display Effect More Eye-Care
Compared With Traditional Screen Technology, The Optical Bonding Technology Can Make The Screen Thinner, Equipped With Toughened Glass For Providing Better Screen Protection. With Tape On The Back, More Flexible To Integrate Into Your Project
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Standard Raspberry Pi 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards
On E-Paper IT8951 Driver HAT (B)
For Use With Controller Boards Like Raspberry Pi/STM32
| SPI PINOUT | |
|---|---|
| VCC | Power, 5V input |
| GND | Ground |
| MISO | SPI MISO pin |
| MOSI | SPI MOSI pin |
| SCK | SPI SCK pin |
| CS | SPI chip selection, low active |
| RST | External reset, low active |
| HRDY | Busy status output, low active |
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
