13.3INCH E-PAPER DISPLAY (B), E-INK DISPLAY, 960×680 PIXELS, RED / BLACK / WHITE, SPI COMMUNICATION, PARTIAL REFRESH SUPPORT, OPTIONAL FOR E-PAPER DRIVER HAT, WAVESHARE 27236

276,48 €




13.3″ E-Paper Display (B)

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

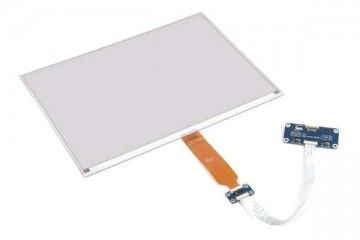

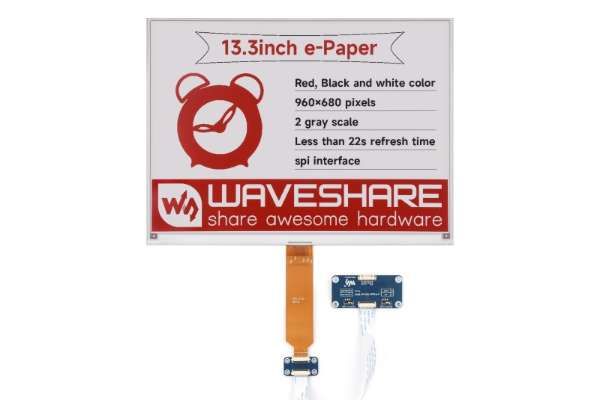

 13.3inch red / black / white e-Paper display, front view
    • Size13.3"
    • Resolution960×680
    • Viewing Angle>170°
    • Display ColorRed / Black / White
    • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • RefreshingPartial Refresh Support













Features At A Glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
  • Optional for e-Paper Driver HAT:
    • With standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards/Jetson Nano
    • Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
    • Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
OPERATING VOLTAGE Raw display: 3.3V GREY SCALE 2
e-Paper Driver HAT: 3.3V/5V
INTERFACE 3-wire SPI, 4-wire SPI PARTIAL REFRESH TIME 2.9s
DISPLAY DIMENSIONS 286.32 × 212.26 × 1.20mm FULL REFRESH TIME 22s
DISPLAY AREA 275.52 × 195.16mm REFRESH POWER 75mW
DOT PITCH 0.287 × 0.287mm STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 960 × 680 pixels VIEWING ANGLE >170°
DISPLAY COLOR red, black, white



Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.



Optional For E-Paper Driver HAT

Standard Raspberry Pi 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards / Jetson Nano

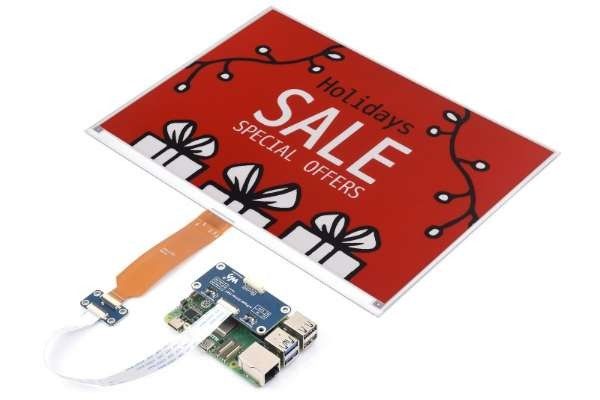

13.3inch red / black / white e-Paper display, connecting with Raspberry Pi 5
Raspberry Pi 5 in the photo is NOT included.



Onboard SPI Control Interface
On E-Paper Driver HAT

For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

e-Paper Driver HAT front view, interface introduction
VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output
PWR Power on/off control



Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...



Outline Dimensions
13.3inch red / black / white e-Paper display, outline dimensions e-Paper Driver HAT, outline dimensions
