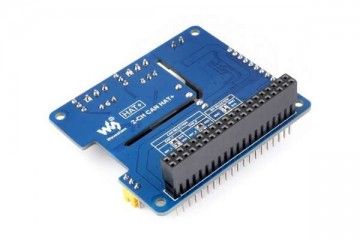

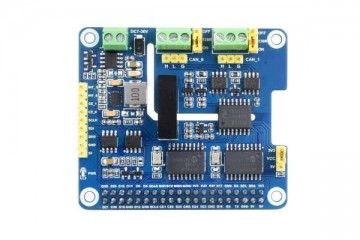

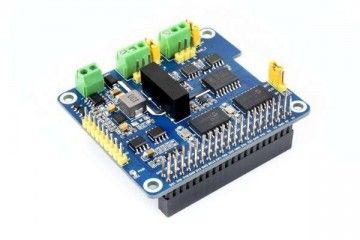

2-CHANNEL ISOLATED CAN BUS EXPANSION HAT FOR RASPBERRY PI, DUAL CHIPS SOLUTION, STACKABLE DESIGN FOR EXPANDING MULTIPLE CAN CHANNELS, RASPBERRY PI HAT, WAVESHARE 27338
- Stock NO
- Brand: WAVESHARE
- ID number: 3997/
Stackable design for expanding multiple CAN channels, HAT+ standard support
The 2-CH CAN HAT+ is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi. Supports expanding multiple CAN channels by stacking with the 2-CH CAN HAT or 2-CH CAN FD HAT. Adopts HAT+ standard design, compatible with Raspberry Pi series boards such as Raspberry Pi 5/4/3/Zero. Onboard various protection circuits, including electrical isolation to make communication more safe and reliable. Supports wide range voltage input of 7~36V, suitable for industrial applications.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards / Jetson Nano
- Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication
- Onboard unibody power supply isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
- Onboard digital isolator, signal isolation makes the communication more safe and stable, and better anti-interference
- Onboard external power supply terminal, supports 7~36V wide voltage power input, supports powering the Pi and the HAT at the same time
- Onboard SM24CANB TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
- Onboard voltage translator, select 3.3V/5V operating voltage by jumper
- Onboard 120Ω terminal resistor, configured by jumper
- Breakout SPI and I2C control pins, for connecting with other host control boards
- Comes with online development resources and manual (examples in Python/C)
| CAN CONTROLLER | MCP2515 |
|---|---|
| CONTROL BUS | SPI |
| POWER SUPPLY METHOD | External power supply terminal or Raspberry Pi GPIO |
| TERMINAL VOLTAGE INPUT | DC 7~36V |
| OPERATING VOLTAGE | 5V |
| LOGIC LEVEL | 3.3V/5V |
| DIMENSIONS | 65.0 × 56.5mm |
Enable Isolated And Stable CAN Bus Capability For Your Raspberry Pi
Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
MCP2515 CAN Controller + SN65HVD230 CAN Transceiver
Multi-Channel CAN Bus Communication Support, With Reserved Solder Pads On The Back For CAN Channel Chip Selection And Interrupt Pin Selection. Supports Stacking Two Of This Module For Expanding 4-Ch CAN Bus, And Can Be Directly Stacked With 2-CH CAN HAT Or 2-CH CAN FD HAT, Allowing Flexible Expansion For Various CAN Application Scenarios
Stacking with 2-CH CAN HAT
Stacking with 2-CH CAN FD HAT
* for reference only, please refer to the Package Content for the detailed part list.
SM24CANB TVS Diode, ESD Protection, Transient Spike Voltage Protection
Easily Select 3.3V / 5V Operating Voltage, Or Enable/Disable 120Ω Terminal Resistor, Via Onboard Jumpers
