8INCH CAPACITIVE TOUCH DISPLAY, 8INCH MONITOR, 768×1024, TOUGHENED GLASS PANEL, HDMI INTERFACE, IPS PANEL, 10-POINT TOUCH, WAVESHARE 27026

114,34 €




8″ Capacitive Touch Display

High Resolution | Multi-Point Touch | Full Color

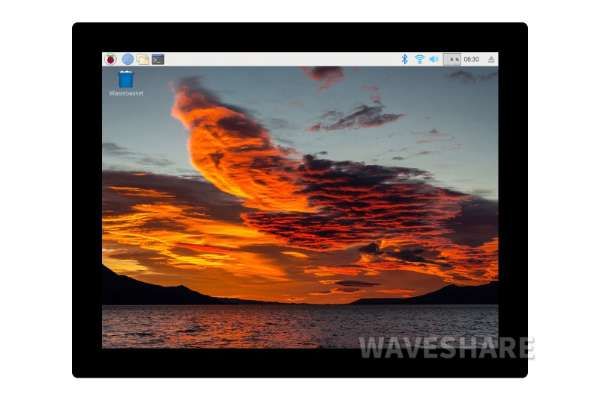

 8inch 768×1024 Capacitive Touch LCD, front view



    • Size8″
    • Resolution768×1024
    • Display InterfaceHDMI
    • Display PanelIPS
    • Viewing Angle178°
    • Touch TypeCapacitive
    • Touch Points10-Point
    • Touch PortUSB Type-C
    • Touch PanelToughened Glass
    • OSD MenuBrightness/Contrast
  • Audio Output 13.5mm Jack
  • Audio Output 24PIN Header
The display orientation is portrait by default, 768×1024 resolution (H×V). Change the software config for landscape display.



Device & System Support



8inch 768x1024 LCD device support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series Board
Supports Ubuntu, single point touch, driver free

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free



Connection Examples

Working With Raspberry Pi 5

8inch 768x1024 LCD, connecting with Raspberry Pi 5


Working With Raspberry Pi 4B

8inch 768x1024 LCD, connecting with Raspberry Pi 4B


Working With Raspberry Pi 3B+

8inch 768x1024 LCD, connecting with Raspberry Pi 3B+


Working With Raspberry Pi Zero 2 W

8inch 768x1024 LCD, connecting with Raspberry Pi Zero 2W

You need to prepare additional mini HDMI adapter and USB cable



Working With Jetson Series Board

8inch 768x1024 LCD, connecting with Jetson nano IO board


Working With PC

8inch 768x1024 LCD, connecting with PC

for reference only, the above controller boards or host are NOT included



IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

8inch 768x1024 LCD, IPS display panel with 178° wide viewing angle

Capacitive 10-Point Touch
8inch 768x1024 LCD, touch control demo
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel



Supports Backlight Adjustment Via Software
8inch 768x1024 LCD, backlight adjustment demo

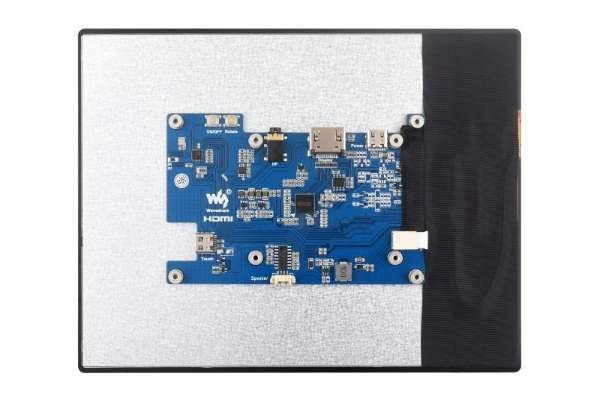

Interface Introduction

8inch 768x1024 LCD interface introduction and onboard components



Dimensions
8inch 768x1024 LCD dimensions

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
