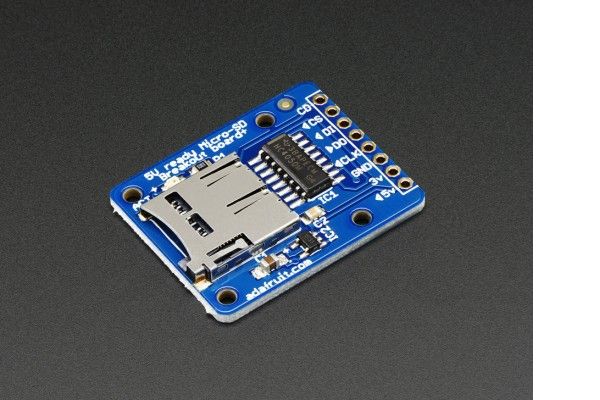

Not just a simple breakout board, this microSD adapter goes the extra mile - designed for ease of use.
- Onboard 5v->3v regulator provides 150mA for power-hungry cards
- 3v level shifting means you can use this with ease on either 3v or 5v systems
- Uses a proper level shifting chip, not resistors: less problems, and faster read/write access
- Use 3 or 4 digital pins to read and write 2Gb+ of storage!
- Activity LED lights up when the SD card is being read or written
- Four #2 mounting holes
- Push-push socket with card slightly over the edge of the PCB so its easy to insert and remove
- Comes with 0.1" header (unattached) so you can get it on a breadboard or use wires - your choice
- Tested and assembled here at the Adafruit factory
- Works great with Arduino, with tons of example code and wiring diagrams
For details on getting started, check out Adafruit detailed tutorial discusses microSD cards, wiring and how to use this breakout board with an Arduino
Dimensions (without 0.1" header):
- Length:31.85mm
- Width:25.4mm
- Height:3.75mm
- Weight:3.43g
Downloads:
The files and schematics are at the github repository
netduino driver, netduino sample and Documentation parts one and two
