Product details

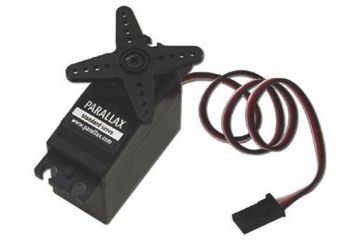

The Parallax Standard Servomotor is ideal for robotics and basic movement projects. It can hold any position over a 180-degree range and is easily interfaced with any microcontroller able to produce a 50Hz PWM output.
- Holds any angular position between 0 and 180°
- High-precision gear made of POM (polyacetal) resin makes for smooth operation with no backlash
- Torque: 38 oz-in @ +6 V
- Power supply: +4 V to +6 Vdc, 15 to 200 mA
- Operating temperature range: -10 to +50°C
- Dimensions: 55.8 x 19 x 40.6 mm excluding servo horn
- Weight: 44 g
- Standard R/C servo mounting and 3-pin connector
Specifications
Maximum Output Torque; 38 Oz-in
Supply Voltage; 4 → 6 V
Power Rating; 140 mA
Length; 406mm
Width; 55.8mm
Depth; 19mm
Dimensions; 406 x 55.8 x 19 mm
Current Rating; 140 mA
